Description:

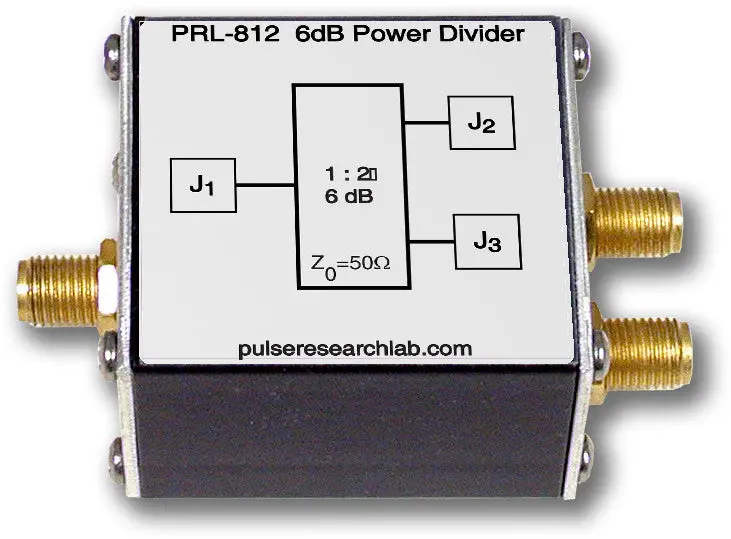

The PRL-812 is a series of DC- coupled, 50 Ω Power Splitters intended for broadband and microwave applications.
The PRL-812 a single 1:2 splitter (6 dB) and is closely related to the following products:
- PRL-812D, 2 x 1:2 splitter (6 dB)
- PRL-814, 1:4 splitter (12 dB)
All models are supplied with SMA connectors, with the exception of the PRL-812-BNC .
The input impedance of each port is 50 Ω when all the other ports are terminated into 50 Ω.
Also see our PRL-860D, 10x attenuating signal tap, for in-line probing of GHz signals.
PRL-812 Block Diagram
| PRL-812-BNC | PRL-812-SMA | |
|---|---|---|
| I/O Voltage ratio | 2X | 2X |
| Insertion Loss (DC) | 6 dB | 6 dB |
| No. of input channels | 1 | 1 |
| No. of outputs/channel | 2 | 2 |
| I/O connectors | BNC | SMA |
| Output Rise Time | 80 ps | 60 ps |
| -3 dB Bandwidth | 4.3 GHz | 5.8 GHz |
| I/O Impedance (DC) | 50 Ω ± 0.5 Ω | 50 Ω ± 0.5 Ω |
| Maximum Input Power (avg) | 0.9 W | 0.9 W |
| Maximum Vin (DC) | 6.7 V | 6.7 V |
| Dimensions (W x H x D-in.) | 1.3x 1.0 x 1.5 | |
| Weight (Oz) | 2 | 2 |
*Worst case is 10% higher than the typical value.
