Description
AEM offers several sensor and Plug & Pin connector kits for vehicles that require additional outputs and/or upgraded hardware over existing sensors. Available sensors include boost/backpressure sensors, exhaust gas temperature (EGT) sensors, nitrous oxide/brake pressure sensors, UEGO replacement sensors, inlet air temp sensors (IAT), K-Type sensors and more. All sensors come with a three- wire mating connector with 12″ leads for ease of installation.
* High-quality sealed sensor housings
* Mating connector and 12” leads included (sensors)
* Accurate and affordable!
- Accuracy: +/- 0.5% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
- Operating Temp: -40C to 105C / -40F to 221F
- Burst Pressure: 500PSI
- Response Time: < 1ms
- Vibration:100 to 2000Hz, 20g Sinusoidal, 3 Axes
- Sensor Body: Stainless Steel
- Wetted Materials: 304L & 316L Stainless Steel
- Thread: 1/8″ NPT Male Thread
- Weight: < 85 Grams
- Supply Current:
- Output: .5 to 4.5Vdc Linear
- Elec. Termination: Integral weatherproof connector, includes mating connector, pins & pin lock

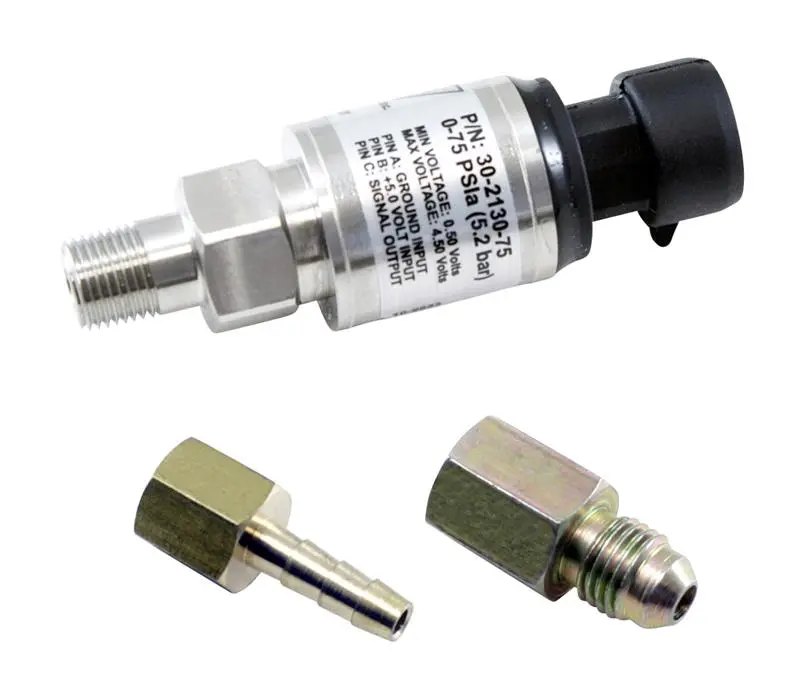

- Includes: 75 PSIa or 5 Bar Stainless Sensor, Connector, Pins, Pin Lock, 1/8″ NPT to -4 Adapter & 1/8″ NPT to 3/16″ Barb Adapter
