Introducing the SS5 LED Pod! Featuring the highest output intensity of any 5-inch LED pod on the market these auxiliary lamps have been designed for maximum functionality with patented technology and custom-engineered TIR optics all in a durable package.
Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare so not all of the light shines on target. Instead the custom-engineered TIR optic in the SS5 collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency.
Selectable Backlight. The Stage Series 5inch LED Pod features a selectable backlight with eight different color options perfect for an extra styling accent or for more visibility when you’re not using the main beam. Selecting your backlight color is easy – simply alternate the power on and off. There’s no complicated programming with a controller! The SS5’s backlight fully illuminates the TIR optic providing unique accent lighting that you won’t find on other LED pods.
Simple connections. All SS5 LED pods feature an integrated and waterproof DT type Deutsch-style connector on the back and come with a 6-inch pigtail with bare leads. For installation you can wire yourself or select an optional Diode Dynamics wire harness.
Features:
- Engineered TIR (total internal reflection) optics
- Selectable backlight color with eight color options
- Built-in linking feature build up to 50 inch bar
- Torture-tested heavy-duty construction
- Ultra-high intensity: shines almost mile away
- Assembled in USA
Included in the box:

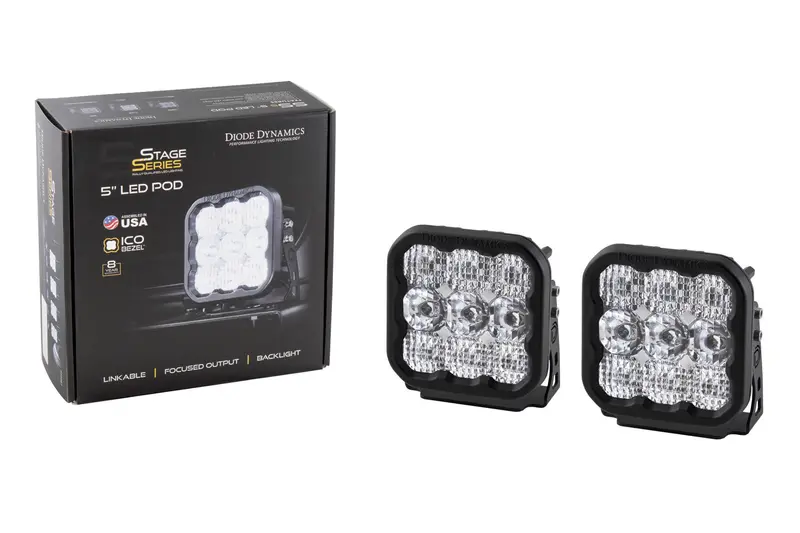

- Two (2) Stage Series 5inch LED Pods
- Two (2) Deutsch-style wire pigtails
- Two (2) Mounting brackets and hardware
Specifications:
| beam_angle | 20×8 Degrees |
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/diode%20ASAP.png |
| color_l | White |
| Connector | Deutsch DT Input |
| height | 8.0 |
| last_update | 2023-02-21 02:28:53 |
| last_update | 2023-06-21 15:08:30 |
| length | 9.0 |
| lens_material | Polycarbonate |
| light_pattern | Driving |
| lumens | 3800 Lumens |
| LUX | 4 000 cd |
| material_l | Aluminum Casting Rubber Gasket |
| material_l | Aluminum Casting, Rubber Gasket |
| Series | SS5 |
| sold_as | Pair |
| Universal | Yes |
| vehicle_type | Jeep |
| vehicle_type | Jeep|Truck/SUV|Car |
| volts | 9-16V |
| Warranty | 8 Year Warranty |
| waterproof_rating | IP69K Waterproof, High Pressure |
| weight | 6.3 |
| width | 9.0 |
