Description
Note: Prices can vary based on options selected. For pricing on a specific configuration, contact us.
Datasheet
Key Features:
- Standard 10 MHz Frequency
- 25.8 mm x 25.8 mm x 12.8 mm package
- +/- 3 ppb over industrial temp
- 5.0V supply
- 4.0V Ref. Voltage Out
- Sine Wave output
Common Applications:
- SDH/SONET
- Cellular base stations
- Test Instrumentation •
- Synthesizers
- SATCOM terminals
Functional Description:

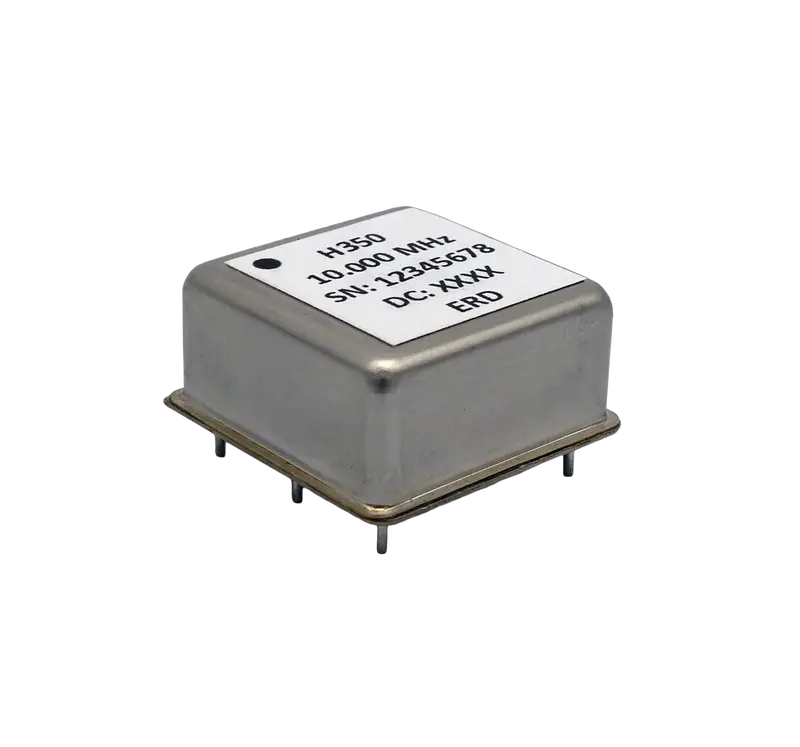

The H350 10MHz OCXO represents an industry-standard frequency reference source with a volume production record of high reliability for a wide range of RF applications. Due to this large-scale production, the H350 presents a cost-effective solution to many customer requirements while providing industry-leading performance.
With temperature stability as good as ±3 ppb over the range of -40°C to +85°C, the H350 outperforms many competitor parts in the same package size. The H350 comes in a 25.8 mm x 25.8 mm x 12.8 mm package, lending itself to applications with tight footprint requirements.
An optional reference voltage output gives the user a stable, ovenized voltage reference to derive their control voltage (EFC) from. This will result in less skew over temperature than using contemporary methods of EFC generation.
