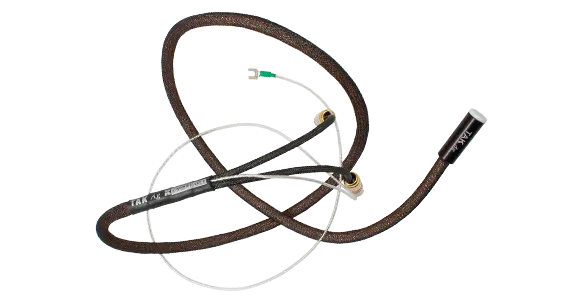

Kimber Kable Tak HB High-Bandwidth Phono Cable

Description

Kimber Kable understands that a turntable is an extension of the audiophile’s commitment to musical enjoyment. TAK™ preserves all the precious detail that can be extracted from vinyl. OCQ/2™ (Orthogonal GyroQuadratic/2 channel) braiding virtually eliminates electromagnetic interference, radio frequency interference and crosstalk. Proprietary shielding material drastically reduces low frequency hum. Standard terminations are high quality 5-pin DIN to RCA or XLR. Other termination options are available on request. 2 VariStrand silver conductors and 2 VariStrand copper conductors.

Specifications:

• DUT: TAK HB 1m terminated with Ultraplate RCA type connectors.
• (Cp) parallel capacitance: 46.9 pF @ 20 kHz
• (Ls) series inductance: 0.901 µH @ 20 kHz
• (Rdc) dc loop resistance: 0.105 Ω Ground/Shield: R: 0.061 Ω >collection.
