Description
The SpeedFactory Racing Aluminum Tucked Radiator is a must have when trying to utilize precious engine bay space in your Honda/Acura vehicle. These radiators are substantially more efficient than your OEM radiator even under average daily driving conditions, and also provide lower coolant temperatures in very extreme environments and conditions- resulting in the increased performance you need all around for your vehicle.
– The radiator core is USA made, 100% aluminum and the radiator is a dual pass, dual core cross flow design that is proven to reduce coolant temperatures by up to 20-30 degrees.

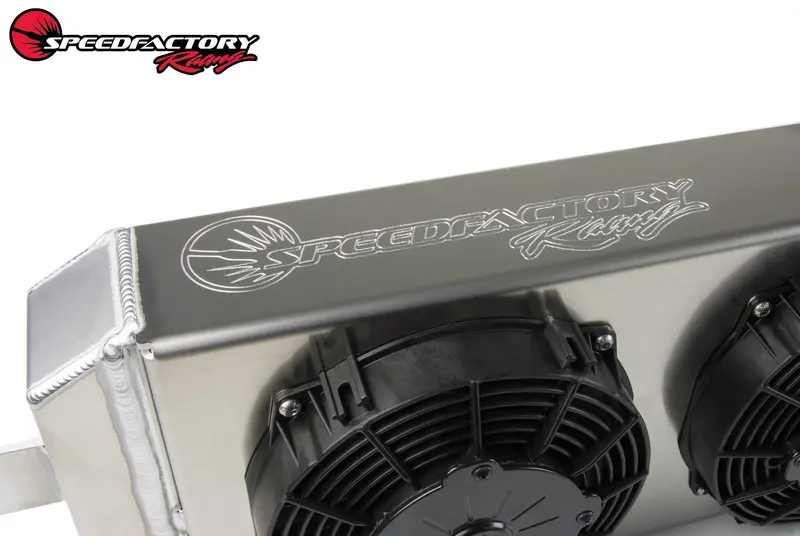

– The Speedfactory logo is CNC engraved into the top of the shroud, and these radiators are available in standard hose end (32mm) or -16AN configurations for the ultimate clean look.
– This radiator is designed for street, track, and show applications.
– Dual SPAL High Performance cooling fans and 1-piece aluminum fan shroud is attached for maximum cooling efficiency.
– SPAL Fan Specifications: 7.5″ Straight Blade Puller Fan, 437 CFM
– Overall dimensions: 24″ wide x 9 1/2″ tall x 5 1/2″ thick (Thickness includes fan shroud and fans).

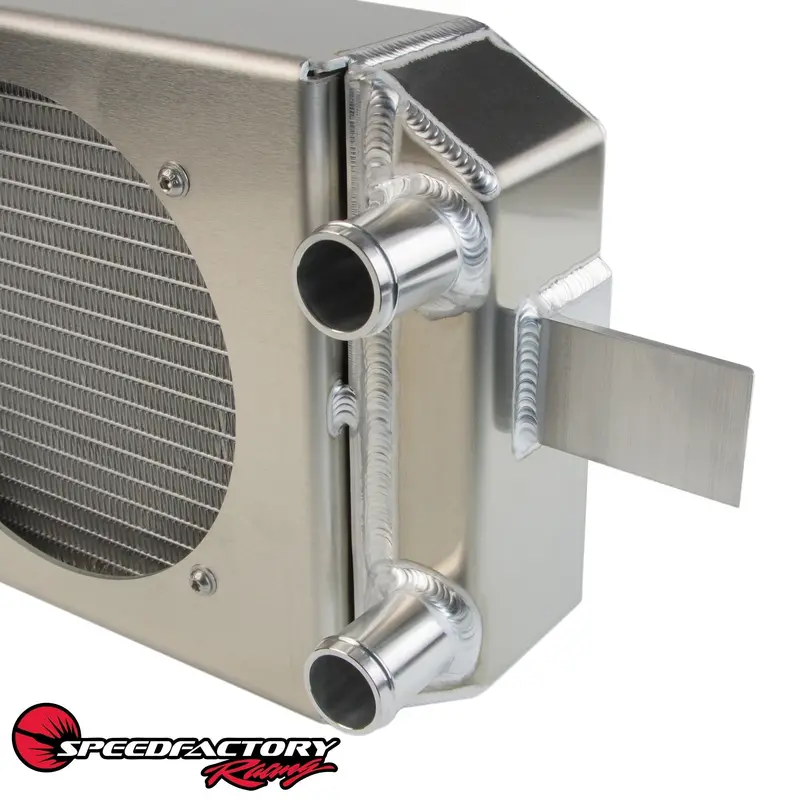

– Welded inlet / outlet fittings are either -16AN male -OR- 32mm billet hose ends
– Radiator drain fitting is -6AN ORB (O-Ring Boss)
– All SpeedFactory Racing radiators are proudly manufactured and pressure tested in-house
– Hundreds of road racers, drag racers, show car owners, and daily drivers all around the world are staying cool with a SpeedFactory Racing Aluminum Tucked Radiator. Order yours today!
INSTALLATION
Minor drilling for the mounting holes (and in some applications minor cutting of the radiator support) is necessary for installation.
**NOTE** The mounting tabs do not come with holes drilled in them because many applications will need to have the holes drilled in slightly different locations.
For our -16 AN Tucked Radiator Hose and Fitting Kits, please click HERE
Our fitting configuration recommendations are as follows:
B Series Cylinder Head:
Thermostat Housing – 45 Degree Fitting
Bottom of Radiator – 45 Degree Fitting
Filler Neck – 45 Degree Fitting
Top of Radiator – 45 Degree Fitting
K-Series Engines
Thermostat Housing – 45 Degree Fitting
Bottom of Radiator – 90 Degree Fitting
Filler Neck – 45 Degree Fitting
Top of Radiator – 45 Degree Fitting
Please Allow 5 – 7 Days For Fabrication.
