Monitor Audio C1l In-Ceiling Speaker – Single Unit

Description

• Description
• Features
• Specifications

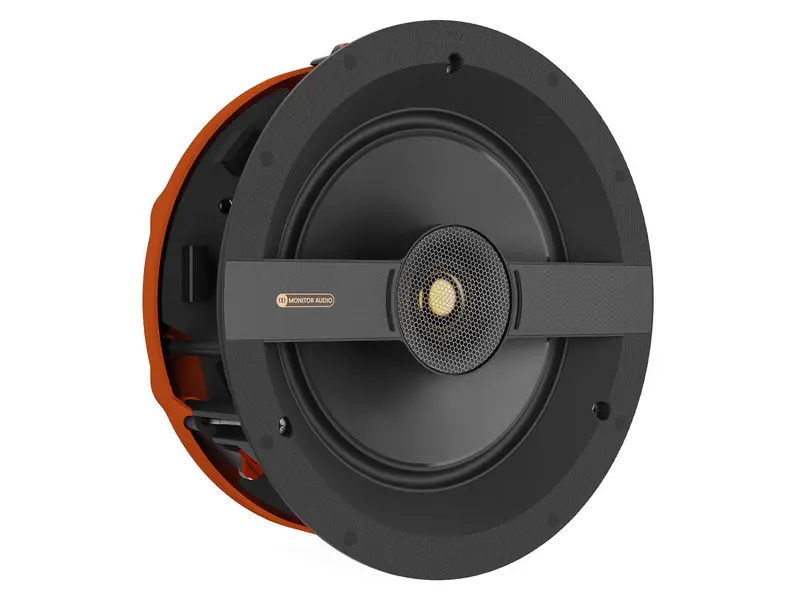

• This large Tier 1 in-ceiling loudspeaker is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. It has a cut-out dimension of 248 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.

  This large Tier 1 in-ceiling loudspeaker is designed for cost-effective installations, where product simplicity and solid acoustic performance is required. It is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear lifelike high-fidelity sound – of the quality you’d expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 248 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.

  Optional square grille can be used with this model.

• FEATURES:

  • Ideal for cost-effective installations, where product simplicity and solid acoustic performance is required
  • Two-way design
  • 1 x 1.25″ (32 mm) C-CAM tweeter with UD Waveguide I for lifelike sound
  • 1 x 9″ (229 mm) C-CAM mid-bass driver for clear mid-range and full bass
  • Patented Quik-Link speaker cable connector for quicker installation (UK patent application no. 2216966.8)
  • Tri-Grip II for easy and secure fitment

• SPECIFICATIONS:

  • System Format: 2–Way
  • Channels: 1
  • Frequency Response, Installed (-6dB): 30 Hz – 25 kHz​
  • Nominal Impedance: 8 ohm
  • Minimum Impedance (20Hz to 20kHz): 6.4 Ohm @ 150 Hz
  • Sensitivity (2.83Vrms@1m, Installed): 88 dB
  • Maximum Peak SPL* (single speaker @ 1m Z-Weighted): 116 dB
  • Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor): 75 W
  • Recommended Amplifier Power (RMS into 8 OHM, Music Signal): 40 – 150 W
  • Drive Unit Complement:
    • 1 x 9″ (229 mm) C-CAM mid-bass driver
    • 1 x 1.25″ (32 mm) C-CAM tweeter
  • Crossover Frequency: LF/HF: 2 kHz
  • Mounting Depth: 99 mm (3^7/8“)
  • Cut-Out Hole Diameter: 248 mm (9^3/4“)
  • External Dimensions (Including Grille (H x W x D)): 278 x 278 x 103​ mm (10^15/16 x 10^15/16 x 4^4/16)”
  • Weight (each): 2.5 kg (5 lb 8 oz)
  • Pre-Construction Bracket: CL-B
  • Cabinet Finish: Matt black & Orange​
  • Sold As: Single Unit
