Moon by Simaudio 340iX Integrated Amplifier – Used, Demo Available

Description

Base Model 340i X with Balanced XLR inputs. No phonostage or DAC. Available in Two-Tone finish with Original Box, Manual, Remote, and Power Cord!

Endless possibilities

The 340i X Integrated Amplifier integrated allows you to integrate your music system in distinctively new ways.

musical authority

Combining high power, sonic finesse and superb flexibility, the 340i X will seduce you with its musical authority, as well as its rich, engaging and lifelike sound quality.

Winner

Winner of 12 awards, the 340i X can easily be the centerpiece of your music and entertainment system. Needless to say, the 340i X integrated amplifier is constructed to the highest standards that has made MOON products famous around the world.

key features

Of course, key features you’d expect in a MOON Neo Series product are present such as SimLink™, 12V trigger, RS-232 and IR ports for custom-install environments.

Design features

• 6 (six) line-level inputs including a front-mounted 1/8” mini-jack for personal media players.

• 1 (one) pair of balanced input (XLR).

• Headphone output on 1/4” jack located on the front panel.

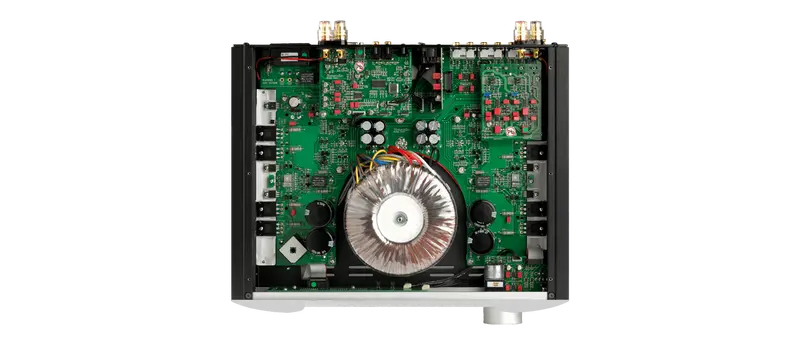

• A massive oversized power supply using a custom toroidal transformer design.

• “Class A” output to 5 watts for greater efficiency.

• One audio input which functions as a “pass-through”, bypassing the gain stage to accommodate components like a home-theater processor, whose own volume control is used instead.

• Precision matched proprietary MOON Bipolar output transistors for improved bass response and accurate sonic reproduction.

Specifications

• Output Power at 8Ω100 W per channel
• Output Power at 4Ω200 W per channel
• Input Sensitivity370mV – 3.0V RMS
• Input Impedance11,000Ω
• Gain37dB
• Signal-to-noise Ratio110dB @ full power
• Frequency response (full range)2Hz – 90kHz +0/-3dB
• Crosstalk-88dB
• THD (20Hz – 20kHz @ 1 W)0.015%
• THD (20Hz – 20kHz @ 100 W)0.05%
• Intermodulation distortion0.03%
• Optional Digital InputsS/PDIF, USB, Optical
• Maximum PCM Resolution32-bit / 384kHz
• DSD sample ratesDSD64, DSD128 & DSD256
• Shipping weight28 lb / 13 kg
• Dimensions (width x height x depth)16.9 x 3.5 x 14.8 in
• 42.9 x 8.9 x 37.6 cm
