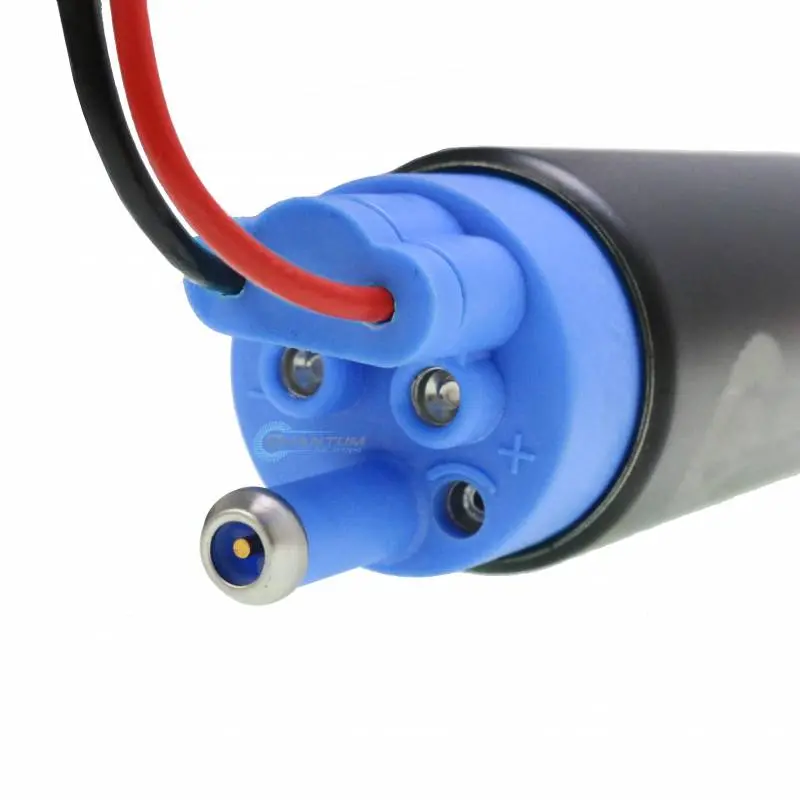

Quantum 340 LPH In-Tank Fuel Pump – High-Performance Upgrade for 1994–2001 Acura Integra

Description

Features:

• Correct strainer shape and orientation ensures the pump does not suck air, fuel tank or cell can be run to empty just like an OEM pump.

• Wiring pigtail designed to handle increased amperage draw of the 340LPH fuel pump, unlike competitors’ wiring which includes thin/ unsafe 20 gauge pigtail.

• GM/ Subaru/ Honda plug and play wiring harnesses available and included with pumps.  More being developed continuously.

• Corrugated E85 compatible flex hoses included for BMW, custom, and GM kits.

• Serialized fuel pump body guarantees warranty.

• Flowtested by RC Engineering, the nationwide experts in fuel pump and injector flowtesting.

Specifications:

• Four different inlet configurations depending on application; 22mm (3/4″) center inlet (QFS-340FT) 11mm (0.433″) offset inlet (QFS-341FT), 11mm (0.433″) parallel inlet (QFS-342FT), 19mm (0.748″) offset GM inlet (QFS-343FT)

• 8mm (0.315″) outlet w/ barb, 38mm (1.540″) pump body diameter

• Coating: corrosion resistant black plated steel w/ laser etched serial number.

• Bypass valve (PRV valve) set at 125.8psi, significantly higher than both Walbro GSS series 255LPH pumps, and Walbro 400/ 450LPH pumps, a distinct advantage for turbocharged and supercharged applications

• Intank/ submersible design, cannot be used outside of tank

• May be used with return or returnless fuel systems, including PWM (pulse modulated systems)

• Designed for gasoline or E85, although E85 may shorten lifespan.

• Integrated check valve built into fuel pump outlet.

• Lifetime warranty!  Quantum has built its reputation on providing a lifetime warranty for all its OEM and performance fuel pumps

Current Draw:

• 11.8 amps @ 43.5PSI (13.5VDC)

• 12.8 amps @ 58.0PSI (13.5VDC)

• 14.4 amps @ 80.0PSI (13.5VDC)
