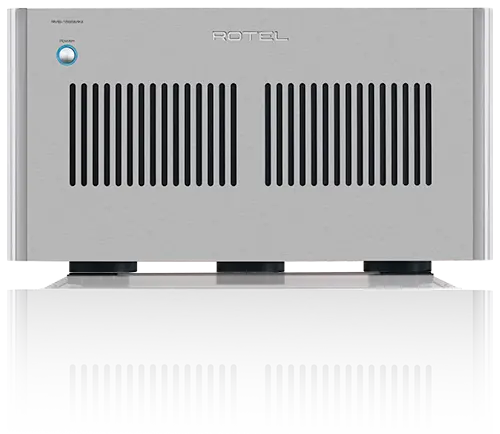

Rotel RMB-1585 MkII Five-Channel AV Power Amplifier

Description

• Description
• Features
• Specifications

• Rotel’s new RMB-1585MKII 5-channel amplifier continues our heritage of producing high power, audiophile performance amplifiers for multi-channel systems.

  The RMB-1585MKII delivers unparalleled performance with 5-channels of Rotel Class AB amplification rated at 210 Watts per channel into 8 ohms and an impressive 340 Watts per channel into 4 ohms with all channels driven.

  Rotel’s new RMB-1585MKII 5-channel amplifier continues our heritage of producing high powered, audiophile performance amplifiers for multi-channel systems.

  Following Rotel’s updated MKII design architecture, the RMB-1585MKII incorporates both circuit and component upgrades in the power supply and amplifier stages to delivering ultra-low distortion, signal isolation, and high-gain output power efficiently packaged in a single, multi-channel amplifier chassis.

  The RMB-1585MKII delivers unparalleled performance with 5-channels of Rotel Class AB amplification rated at 210 Watts per channel into 8 ohms and an impressive 340 Watts per channel into 4 ohms with all channels driven.

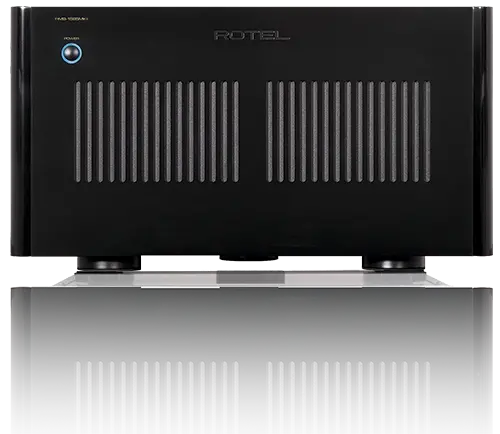

  The RMB-1585MKII is available in both black and silver colors.

• Features:



  • 210 watts per channel into 8 ohms (20-20,000 Hz) at 0.03% THD with all channels driven
  • 4-ohm stable for use with a wide range of speakers
  • Class AB design
    • Dual custom made massive toroidal transformers for stable, noise-free performance
    • Eight high-efficiency energy storage capacitors supply a ready reserve of current
  • Frequency response: 10-100,000 Hz (+0.1/-0.3dB)
  • Signal-to-noise ratio: 120 dB
  • Four thermostat-controlled, variable-speed ultra-low-noise fans
  • Rear panel switch features selectable 5-channel mode or bi-amp mode
    • In bi-amp mode, channels 1+2 and channels 4+5 are wired to receive the same input signal
    • Allows easier bi-amping of compatible left and right speakers
  • Rack mountable with optional hardware (sold separately)
  • Detachable power cord

  Connections:

  • Balanced XLR and unbalanced RCA inputs for all five channels
  • 5-way binding post terminals for each speaker
  • 3.5mm 12-volt trigger in/out

• Specifications:

  Dimensions (W × H × D)431 × 237 × 456mm
  17″ × 9.4″ × 18″ Front Panel Height5U / 221mm (8.75″) Power Requirements120V, 60Hz Power Consumption1200W Net Weight37.4kg (82lbs.) BTU Rating (4Ω, 1/8th power)3317 BTU/hPower Output210W/Ch (5 channels driven, 8Ω)340W/Ch (5 channels driven, 4Ω)440W/Ch (2 channels driven, 4Ω) Total Harmonic Distortion (THD)<0.03% Frequency Response10Hz – 100kHz, +0.1, -0.3dB Signal to Noise Ratio (A Weighting)120dB Gain26.9dB
  Intermodulation Distortion (60Hz:7kHz, 4:1)<0.03% Damping Factor (1kHz, 8Ω)223 Crosstalk/ Separation> 55 db Input SensitivityUnbalanced: 1.89VBalanced: 4.7V Input ImpedanceUnbalanced: 12kΩBalanced: 50kΩ
