Description

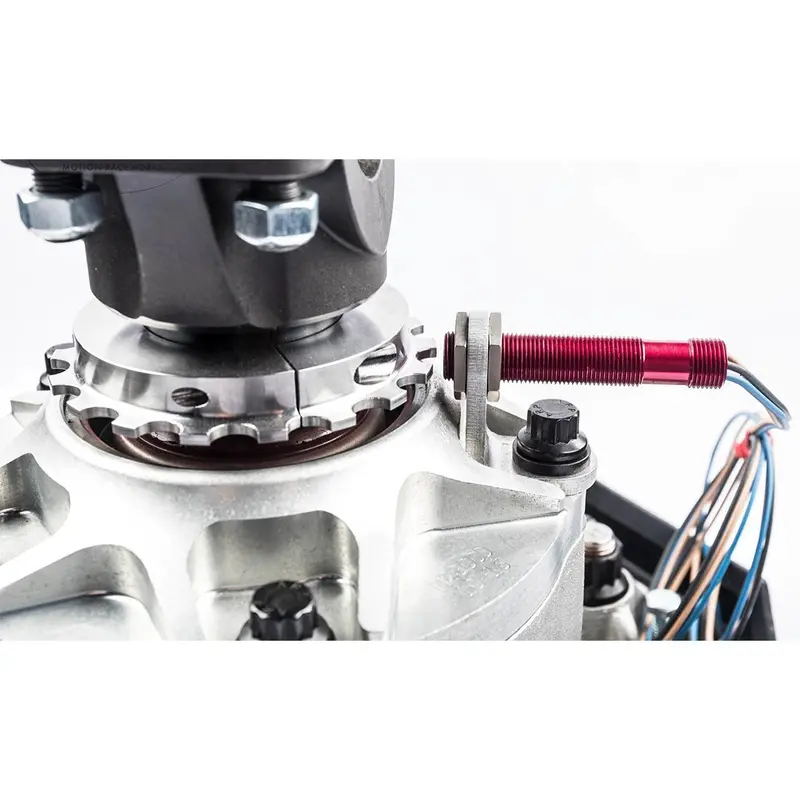

This 5/16″ Hall Effect Sensor is made to work in conjunction with our Billet High Def Gear Tooth Driveshaft Sensor Wheel.
Wiring: (Can be used with 5v, 12v, or 16v reference)
Red: Reference power
Black: Reference ground
White: Signal Wire
Note: This sensor has an internally built in pull up resistor.
Note: Please only use with reference power and reference ground. This means getting your power from a dedicated sensor power source and a dedicated sensor ground source. Any other Power/Ground will create noise in the signal.
