Description
AVAILABLE IN SILVER ONLY.
An amazing all-in-one streaming amp with phono – everything you need for all the power and sourcing you’d require!
ROON READY
Reference-Class High-Quality Audio Technology
Inheriting the reference-class audio technology concept, the JENO Engine transmits and processes audio signals in full digital and with minimal jitter from the input stage to the power stage. The GaN-FET Driver performs high-speed switching with minimal loss. The LAPC conducts speaker load adaptive phase calibration to achieve ideal gain and phase characteristics for any type of speaker. The newly developed low-distortion switching power supply realizes accurate power supply by suppressing switching frequency fluctuations caused by load shifting.
Ideal Simplicity and Performance Realized by the Most Advanced Digital Technology
The SU-G30 features a built-in network playback circuit with thorough measures against jitter and noise. This achieves a simple circuit structure: it transmits digital audio data through the shortest possible signal path from the music sources all the way to the power stage with extremely low signal degradation, realizing uncompromising sound quality and providing a comfortable user interface for seamless app operation.
Accurate Digital Technology
JENO Engine (Jitter Elimination and Noise-Shaping Optimization)
GaN-FET Driver
High-Speed Silent Hybrid Power Supply
LAPC (Load-Adaptive Phase Calibration)
Battery-Driven Clock Generator
High-Rigidity Metal Double Chassis
Noiseless Signal Technology
Digital Noise Isolation Architecture
Ultra-Low Distortion Oversampling Digital Filter
High-Res Remaster – enhanced for compressed audio
Optimally-Activated Circuit System
Technics Definitive Design
High-Rigidity Aluminum Cabinet
Symmetric Structure
Output Power
100 W + 100 W 4 Ω
50 W + 50 W 8 Ω
Dimensions (W x H x D) & Weight
13-3/8 x 3-1/16 x 11-5/8 inch / Approx. 25.4 lbs (Tentative)

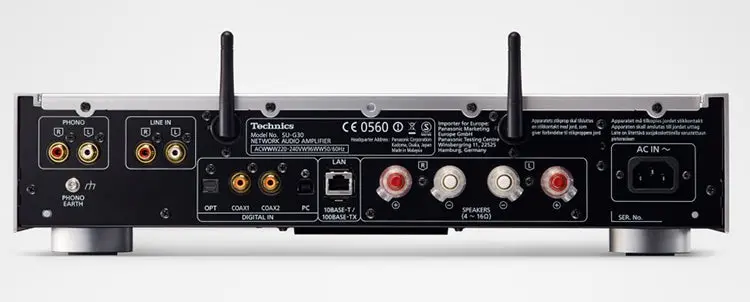

Terminal
Digital Coaxial Input x 2 / Digital Optical Input x 1 / Analog Line input x 1 / USB-A Input / USB-B Input / Phono (MM) input x 1 / Ethernet Terminal / Headphone Output / WiFi a,b,g,n/Bluetooth® (aptX, AAC, SBC) / AirPlay
Digital Input Format
Digital Coaxial:
PCM up to 192 kHz 24 bit
Digital Optical:
PCM up to 96 kHz 24 bit
DLNA, USB-A:
FLAC, WAV, AIFF, ALAC up to 192 kHz 24 bit, AAC up to 96 kHz 320 kbps, MP3, WMA up to 48 kHz 320 kbps, DSD 2.8 MHz, 5.6 MHz
USB-B:
PCM up to 384 kHz, 32 bit / DSD 2.8 MHz, 5.6 MHz, 11.2 MHz with Asynchronous Transfer Mode
