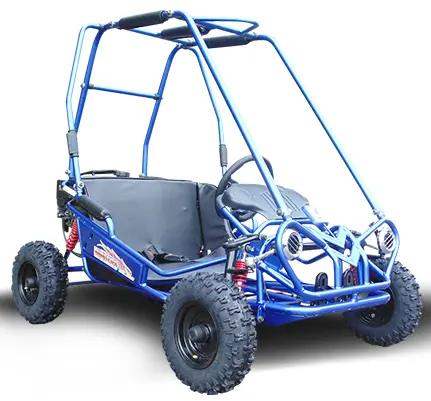

Trailmaster Mini XRS+ Kids’ Go-Kart – 5.5HP Gas Engine, Dual Seating, Adjustable Pedals, Pull Start (Ages 4–9)

Description

The MINI XRS+ Kids Go Kart is an ideal choice for young adventurers. Featuring a 5.5hp gas engine, dual adjustable seats, and adjustable pedals, safety is guaranteed despite its powerful performance capabilities. And starting up is a breeze thanks to its electric pull start. Hit the trails with the whole family and enjoy the ride.

The MINI XRS+ Kids Go Kart is perfect for your young racing enthusiast. With a powerful 5.5hp engine, dual seating, adjustable pedals and pull-start for easy operation, this go-kart gives your kids the power and safety they need to enjoy their ride. Equipped with a 2 wheel drive live axle and full front and rear suspension, your child can take on any terrain with confidence. 3 adjustable pedaling positions ensure maximum comfort, so that both short and tall riders can enjoy the ride.

This MINI XRS+ Kids Go Kart ensures safety and comfort with a seat belt design, fully enclosed bottom, side rails and padded upper brush guard to protect from debris, plus disc brakes and a speed governor to limit your child’s speed up to 12 MPHs. With its 5.5HP gas engine and adjustable pedals, your child will have a safe and fun ride!

Key Features

• Powerful and reliable 4 stroke 5.5HP OHV engine
• Rack and pinion steering
• Two-wheel drive, live axle
• Fully suspension front and rear
• Safety belt
• Adjustable pedals
• Speed governor

Specifications

Engine System

• EPA certified and CARB approved;
• Engine type: 4-stroke, single cylinder,air cooled
• Displacement: 163cc
• Max HP: 5.5hp/3600rpm
• Max torque: 8 lb ft/3600rpm
• Bore x stroke: 2.6 x 1.8 inches
• Max speed: 12.4mph
• Climbing ability: 12 degrees
• Starting system: Manual Pull Start
• Battery: No
• Carburetor brand: JF (RX)
• Engine oil: SAE 15W-40

General Information

• Clutch: Automatic
• Driveline / Driving wheel: Chain /Dual wheel drive
• Suspension, F / R: Dual A-arm /Double Oil Damped Shock
• Brakes, F / R: No / Disc
• Tires, F / R: 4.10-6 / 13 x 5-6
• Fuel capacity: 1.2 gal
• Weight, G.W. / N.W.: 209 / 176 lbs
• Max load: 300 lbs

Dimension Information

• Wheelbase: 42.6 inches
• OA L x W x H: 58.7×38.2×48.8 inches
• Height to seat: 7.5 inches
• Min ground clearance: 3.5 inches
• Pedal to seat back: standard: 30”;Pedal can also adjusted to 3” or 6”shorter.

Download Product Brochure

Assembly Guide

Owner’s Manual

Parts Manual

Chain Adjustment Guide
