Description

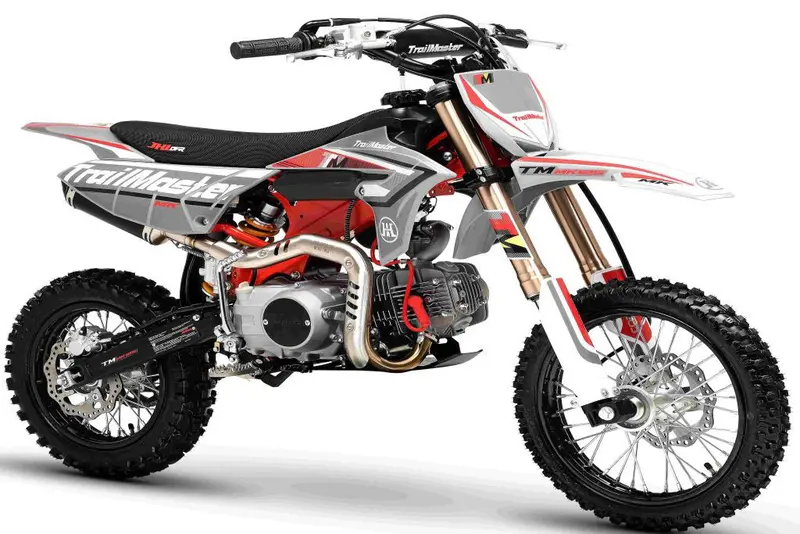

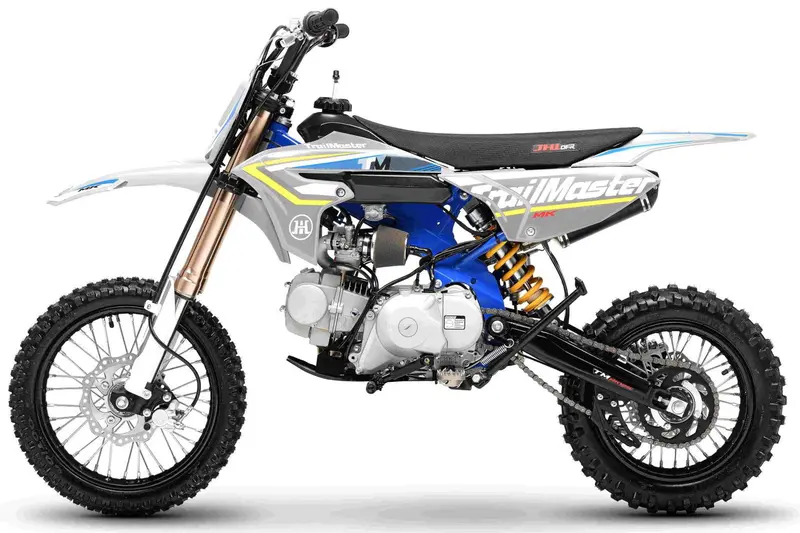

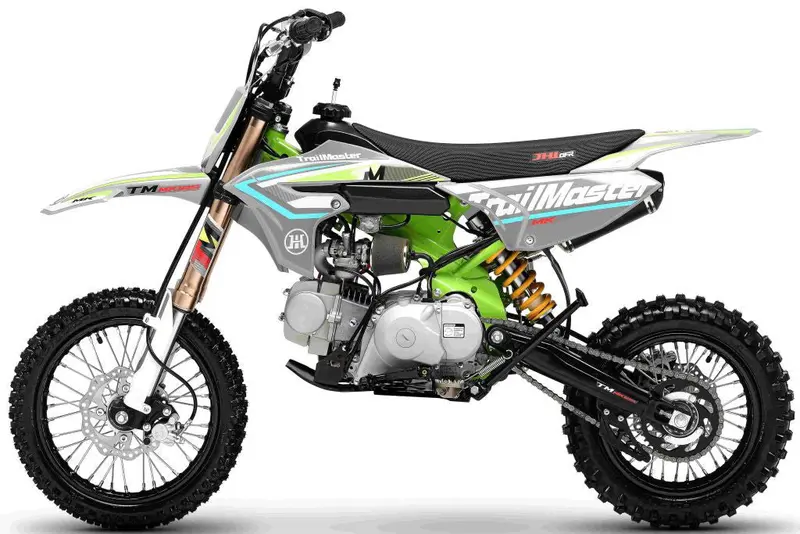

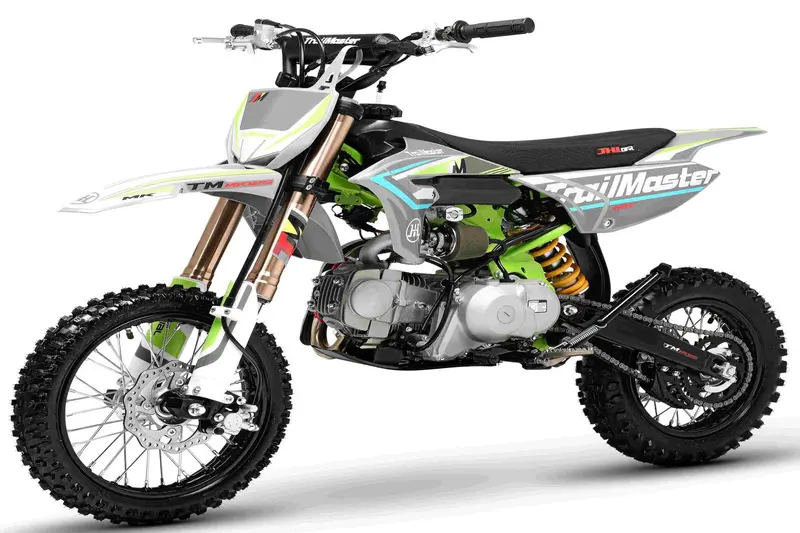

TrailMaster has partnered with JHL Offroad to unveil the MK125, a top-of-the-line mid-size dirt bike from their PRO-Series. The bike boasts a powerful Zhongshen 125cc 4-stroke 6.3hp engine that can be started with either kick start or electric start. With a seat height of 29.5″ and a weight of just 149lbs, the MK125 is both lightweight and high-performing. It comes in three sleek colors – red, blue, and green. This model also includes a 4-speed manual transmission, along with front and rear disc brakes and inverted front shocks for optimal control.
Get even more premium features with our Pro-Series line, such as an Inverted front shock absorber, Nitrogen air gas rear shock absorber, performance stainless steel muffler, alloy foldable handle levers, alloy rims and hubs, high-quality front and rear disc brakes, and a state-of-the-art race suspension system for exceptional handling and maneuverability. Experience effortless key and kick starting with the Electronic CDI ignition, ensuring smooth operation in all gears and a powerful, consistent performance.
Features
- Balanced Shaft ZS125 engine
- Air-cooled, 4-stroke
- Electric start, with kick backup
- Low 29″ seat height for smaller riders
- Newly designed strong frame
- Inverted front shock
- Nitrogen air gas rear shock absorber
- Aluminum linkage
- Performance stainless steel muffler
- Waterproof wire harness
- Alloy foldable handle levers
- Alloy wheels and hubs
Specifications
| Engine Type | Zongshen Balanced Shaft 125 Single cylinder, 4-stroke , air-cooling |
| Displacement | 123cc |
| Max Power | 6.3/7500 (1±1.5%) |
| Max Torque | 8.8/5500（1±1.5%） |
| Compression Ratio | 9.0:1 |
| Shift Type | F4-Speed, N1234 |
| Start Type | Electric / Kick Start |
| Ignition | CDI |
| Min. Fuel Consumption: | ≤367g/kw.h |
| Minimum turning radius : | 1900 mm |
| Lubricant： | 10W/40 |
| Transmission: | Chain Drive |
| Overall Size (L x W x H) | 63*27*42″ |
| Wheelbase | 31″ |
| Seat Height | 29″ |
| Ground Clearance | 10.24″ |
| Fuel Capacity | 0.92 Gal. |
| Wheels | SteelRims, High Quality Alloy Hubs |
| Tires | YUANXING FT: 60/100 -14 – RR: 80/100 -12 |
| Frame | High quality Steel Frame |
| Front Fork | Inverted front shock absorbers 43/45mm |
| Rear Shock | Rear none-adjustable mono shock |
| Upper and Lower Connecting Board | Alloy |
| Handle Lever | Foldable |
| Front Brake | Disc |
| Rear Brake | Disc |
| Exhaust | Stainless steel muffler |
| Packing Size | 55*17*33″ inches |
| N.W/LBS | 149 lbs |
| G.W/LBS | 213 lbs |
Circular Shifting: We have seen some bikes being sold that use circular shifting. We don’t sell them. Circular Shifting means that when the bike is in 4th gear, if you shift up, it goes back into neutral, then 1st gear,
