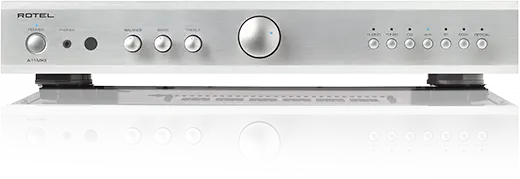

Rotel A11MKII – Mid-Range Integrated Amplifier with Phono Stage

Description

• Description
• Features
• Specifications

• The A11MKII Integrated Amplifier delivers the ideal combination of power and connectivity for anyone seeking to elevate their listening experience.

  Constructed around a massive Rotel-built toroidal power transformer, the A11MKII delivers 50 Watts per channel of Class A/B power into 8 ohms supporting analog, digital and Moving Magnet Phono stage inputs.

  The A11MKII Integrated Amplifier offers an ideal combination of power and connectivity for the music lover seeking to elevate their listening experience.

  Constructed around a linear power supply featuring a massive Rotel-built toroidal power transformer, the A11MKII delivers an authoritative 50 Watts per channel of Class A/B power into 8 ohms, and even higher power into demanding loudspeakers.

  Both analog and digital sources are welcome, with three line-level RCA inputs, coaxial and optical digital inputs, a Moving Magnet Phono stage, and aptX™ HD Bluetooth. An 1/8” headphone jack with dedicated headphone amplifier circuit is provided on the front panel for private listening sessions.

  The intuitive front panel layout includes Bass, Treble, and Balance rotary controls and source input selection ensuring the A11MKII is personal and a pleasure to operate up close. The included IR remote drives a motorized analog volume controller for ease of use at the listening position.

  The A11MKII is available in both black and silver colors.

• FEATURES:

  2 x 50 Watts of robust Class AB power, 8 Ohms

  Includes remote control

  Moving Magnet Phono input for turntable connection

  Bluetooth with aptX™ HD and AAC

  Texas Instruments premium 32-bit/384kHz Digital to Analog Converter

• SPECIFICATIONS:

  DIMENSIONS (W × H × D)430 × 73 × 347mm
  17” x 2 7/8” x 13 5/8” FRONT PANEL HEIGHT60 mm (2 3/8”) POWER REQUIREMENTS120V, 60Hz POWER CONSUMPTION150W STANDBY POWER CONSUMPTION<0.5W NET WEIGHT6.8kg (15lbs.) BTU RATING (4Ω, 1/8th power)450 BTU/h
  POWER OUTPUT50W/Ch (8Ω)62W/Ch (4Ω) TOTAL HARMONIC DISTORTION (THD)<0.03% FREQUENCY RESPONSELine Level Inputs: 10Hz – 100kHz, -0.5dB, +0.05dBPhono Input: 20Hz – 20kHz, -0.5dB, +0.3dB S/N RATIO (IHF “A” Weighted)
  Line Level Inputs: 90dBPhono Input: 85dB
  INTERMODULATION DISTORTION (60Hz:7kHz, 4:1)<0.03% DAMPING FACTOR120  INPUT SENSITIVITYLine Level Inputs: 130mVPhono Input (MM): 1.6mV INPUT IMPEDANCELine Level Inputs: 45kΩPhono Input (MM): 43kΩINPUT OVERLOADLine Level Inputs: 4VPhono Input: 50mV TONE CONTROLS±6dB at 100Hz / 10kHz
